Machines

Below you can view a selection of the machines we have available

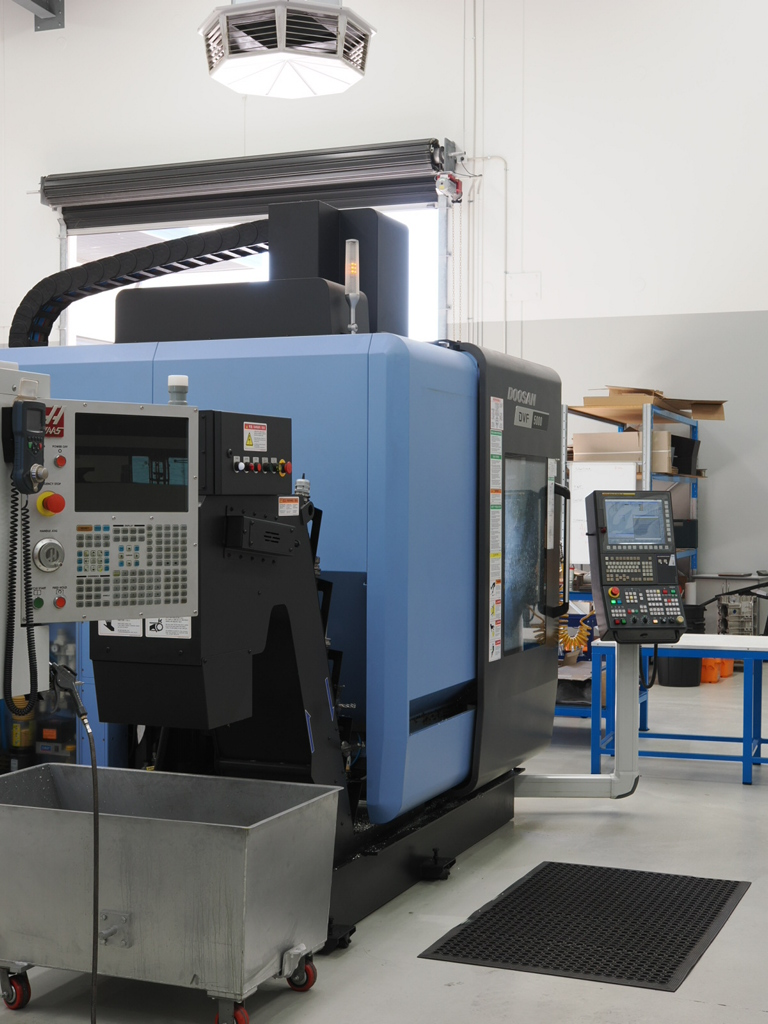

Haas UMC-750SS

Haas Super-Speed 5-Axis Vertical Machining Centre with 500 mm integrated high-speed 2-axis trunnion rotary table and Renishaw probing.

Job capacity 762 x 508 x 508 mm, simulataneous 5-axis machinining capability.

Doosan Lynx 220LY Lathe

Doosan Lynx 220LY Lathe with Y-axis live tooling capability. This machine has a maximum turning diameter of Ø320mm and 500mm long, with a Ø65mm bore.

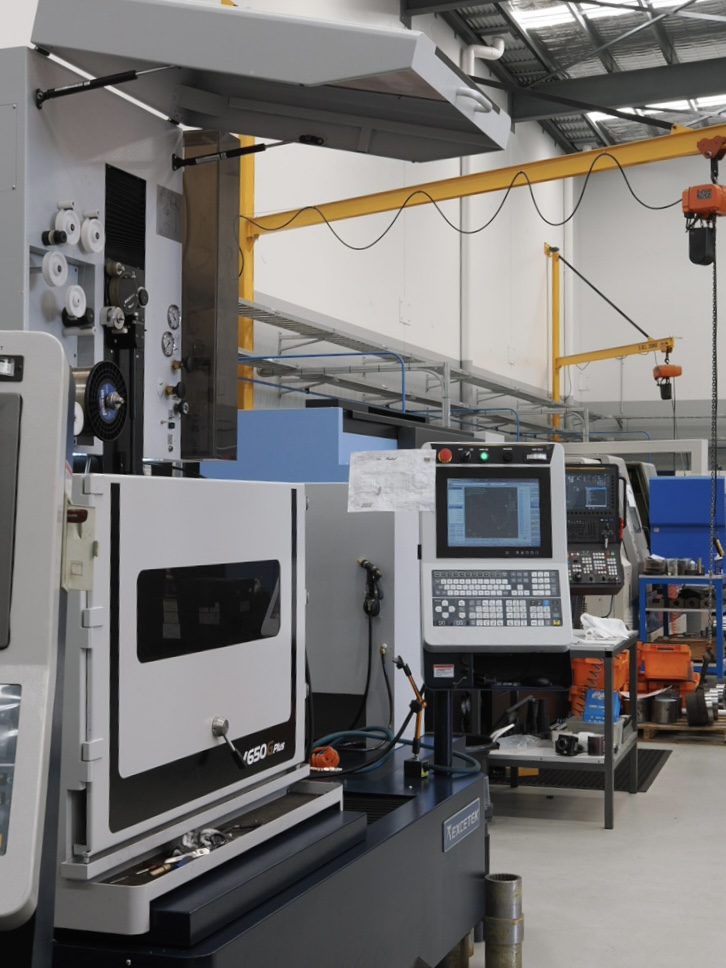

Excetec V400G Wire Cutter

Excetec V400G EDM wire cutter. Work piece capacity of 750x550x215mm, X-Y travel of 300x400mm and Z axis travel up to 220mm. Top and bottom guides are able to travel independently allowing tapers of up to 22° to be accurately cut in jobs. Wire cutters are capable of cutting any material that can carry an electrical charge.



Excetec V400 Wire Cutter

Excetec V400 EDM wire cutter. Work piece capacity of 750x550x255mm, X-Y travel of 300x400mm and Z axis travel 260mm. Top and bottom guides are able to travel independently allowing tapers of up to 30° to be accurately cut in jobs. This machine also has a small 4th axis rotator. Wire cutters are capable of cutting any material that can carry an electrical charge.

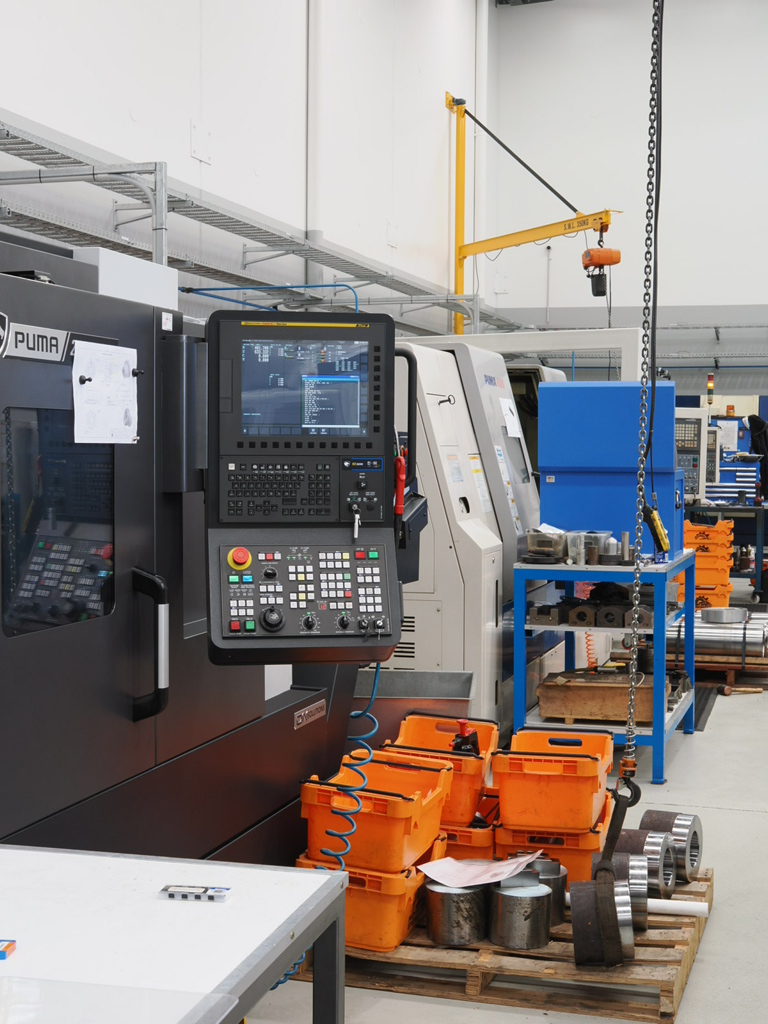

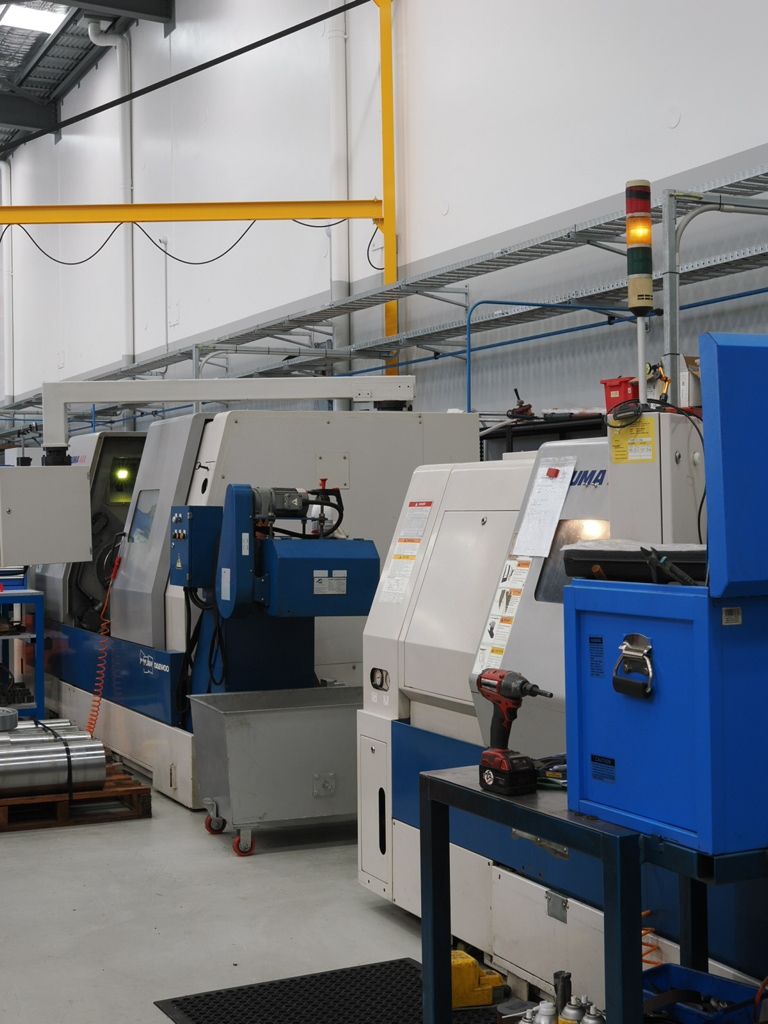

CNC Lathe Daewoo Puma 400

Our big CNC lathe. The Daewoo Puma 400 has a turning capacity of Ø550 x 1100, and a throad dia of Ø114.5.

CNC Mill Haas VF5 Machining Center

Our other Haas VF5 machining center. Slightly smaller than the other Haas machine, this one has a capacity of 1270W x 660D x 850H.

CNC Lathe Daewoo Puma 240M

High Speed Engineering CNC Lathe Daewoo Puma 240M. Capacity of Ø300 x 500 long, Ø65mm throat and live tooling. A very versatile and reliable machine.

CNC Mill Haas VF5XT

Haas VF5XT 20hp Machining Center - has a capacity of 1550W x 660D x 850H.

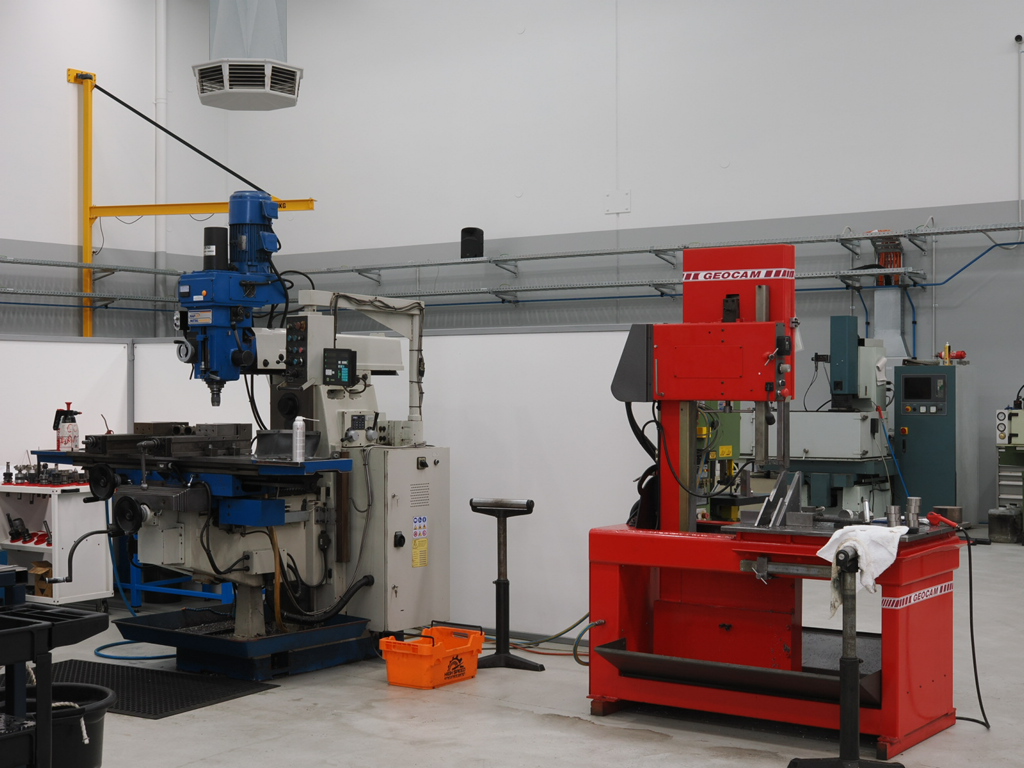

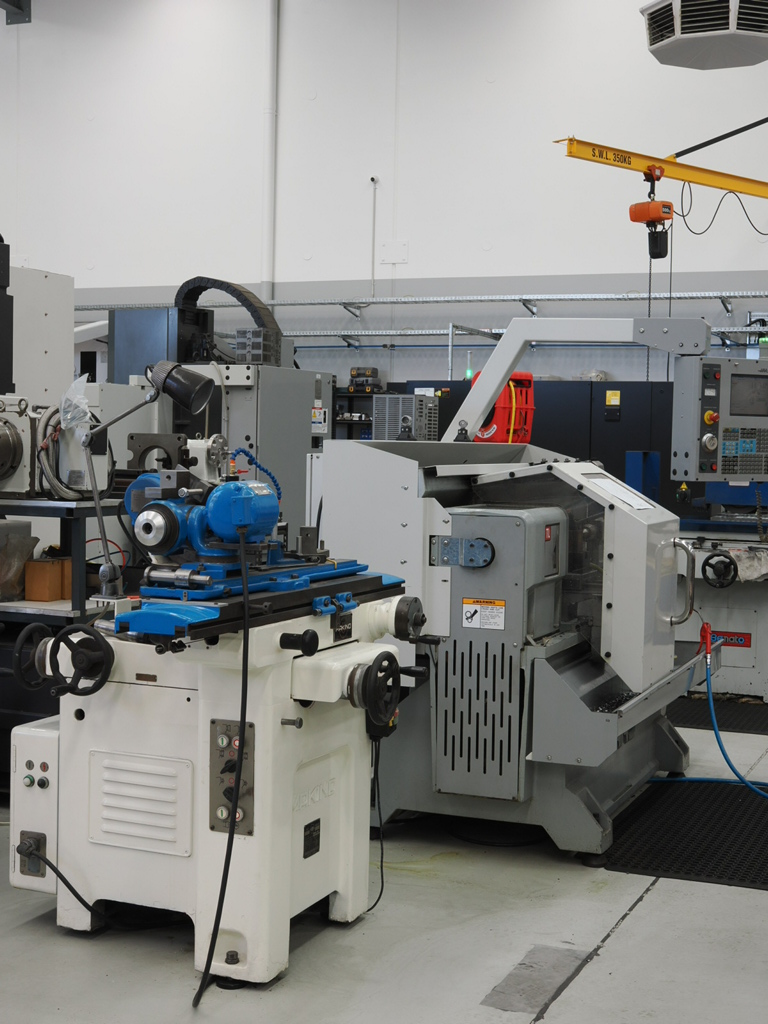

Manual Machines

Our manual machines...
